Steel S-tubes for Front Wheel Cylinder
Fits 46-71 CJ-2A, 3A, 3B, 5, M38, M38A1

Part # A1488

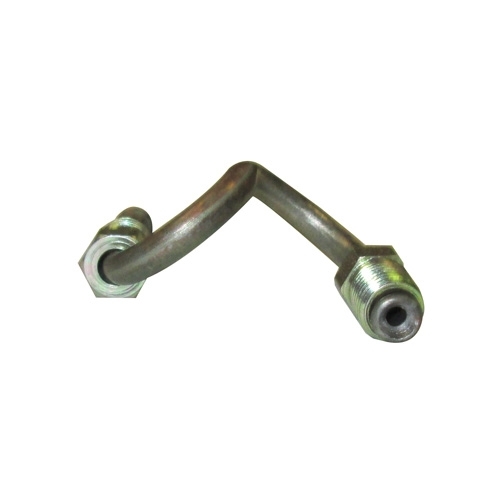

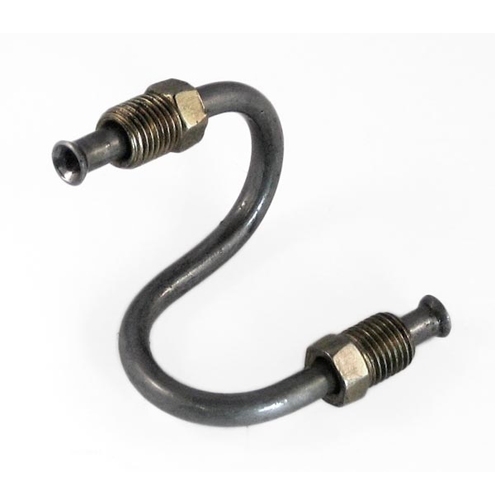

New Replacement Pre-Formed Steel S-tube for Front Wheel Cylinders. (2 required per vehicle)

Pre-formed, pre-flared steel S-tube for front steel brake line system. Connect between front flexible brake hose and wheel cylinders.

46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
55-71 CJ-5
50-52 M38
52-66 M38A1

Part # Price





Call for Details

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

For a '51 CJ3A do I need a set of four? One for each wheel (front and rear)? Thanks.

Willys Jeep Parts Tech:
These are used on the front only.

Hi! A while ago I bought a bunch of stuff in a barn and I can t figure out what this part is. It says on the box: First line: LV7/FD-FORD-Canada second line:C291Q-19956 and third line: Tire pump tube assy. Can t find that part anywhere, don t know where it goes... Can you help me. I have a big box full of it in original individual boxes. Thank s

Willys Tech:
I don't think that came from us. Please call us toll free. We can help.

Are these S tubes the same left and right side? 71 CJ5 225V6

Willys Tech:
These S-tubes are for 9 brakes. If you have a CJ-5 with the V6 you are most likely 10 brakes and need part number: 937325

My 1960 CJ5 front wheel cylinders brakes hoes comes out at about a 45 degree angle. Is the s hose a correction for the new cylinders. I dont see any wheel cylcylinders with that angle .

Willys Tech:
You dont use steel s-lines on your wheel cylinders. This is for stright port wheel cylinders. You use part number: 800896 to go to your wheel cylinders.

Is this a 3/16 diameter brake line?

Willys Tech:
I believe so but will have to check. It is to O.E.M. specs.
