Shop Kaiser Willys

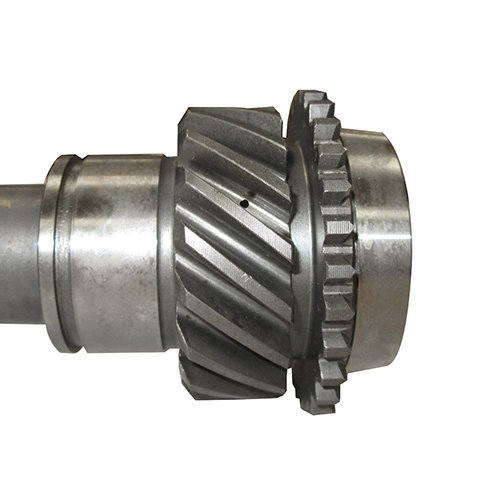

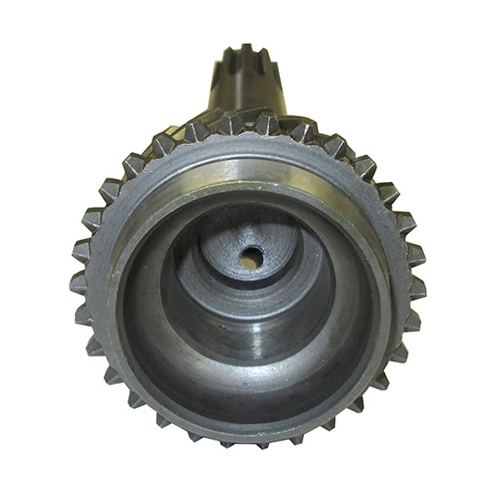

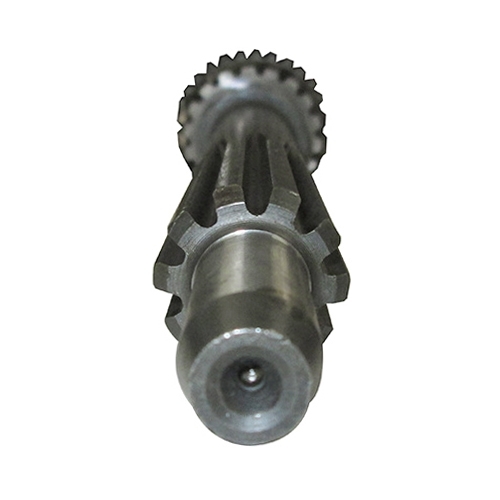

Transmission Main Drive Input Gear (6-226)
Fits 54-64 Truck, Station Wagon with T-90 Transmission

Part # 906203

New Transmission Main Drive Gear (1 required per vehicle)

The gear has a tooth count of 30-18 from front to back and a spline count of 10.

T-90 Transmission with 6-226 engine

54-64 Truck
54-64 Station Wagon

Part # Price





Call for Details

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

I have a T90-A1 that is bolted up to a F134. I recently purchased a 6-226 with bell housing that will be going in my truck. Can I swap this with the out and make it work? Do I need anything else?

Willys Tech:
This should work because it has the longer shaft needed for the 6-226.

I have a T90 - A1 with a 7in. shaft and wanting to install it behind a Chevy V-8 that requiers this longer shaft. Will this interchange in the transmission with no gear issues or is anything else needed, Thanks

Willys Tech:
It should work for you. This is the one alot of people use when doing a conversion for the extra length needed.

Is this a ten tooth spline or an 18?

Willys Tech:
These are 10 spline like original.

Is this shaft for the t90J trans. I need the overall length if possible. thanks Mark

Willys Tech:
For the 6-226 with the T-90 it is 11-1/2 in overall length.
