Shop Kaiser Willys

Body Tub Kit (Steel Tub, Fenders, Hood, & Windshield Frame)
Fits 53-64 CJ-3B (Stamped "Willys")

Part # DMC693197

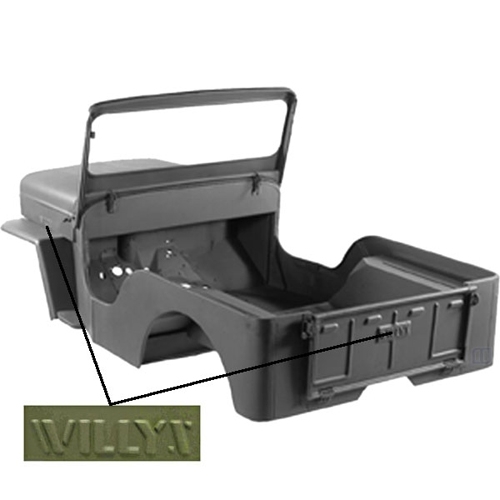

New Complete Steel Body Tub Kit with "WILLYS" stamping

This new steel body tub is manufactured using a seven-step metal preparation process, including: A 5 bath dip to totally eliminate rust, dirt and grease; a phosphate and acid rinse step to ensure corrosion resistance and proper adhesion of the primer; new primer formula and application method that is designed for smooth and even finish.

Includes all major factory mounting locations, including channels for body mounting.

Free Shipping!!

Original thickness one-piece steel construction on body tub. All proper bracing with wooden inserts installed. Comes painted in primer.

Licensed MOPAR Product!!!

Includes:
Complete Steel Body
Passenger Side Fender
Drivers Side Fender
Hood
Windshield Frame
Tailgate

Fits:
53-64 CJ-3B

Note:
Some drilling required for proper fit. Please feel free to call technical support with any questions regarding proper fit and finish. Ships truck freight.

Part # Price
DMC693197

$4,199.99

MSRP:

$4,199.99

MSRP:

1 Item has been added to your cart!
Close

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

WHAT IS THE BRAND AND IS THE GRILLE INCLUDING ON THE KIT?

Willys Jeep Parts Tech:
Grille is separate. See part number: DMC681798

WHAT IS THE DIMENSIONS AND WEIGTH FOR SHIPPING THE COMPLETE STEEL BODY TUB KIT

Willys Jeep Parts Tech:
Give or take 90x60x30 and 450 pounds. It ships truck freight to anywhere in the lower 48 United States.

Does this body kit come with the hardware for the windshield, like the clamps and pivot mount bolts and brackets already attached?

Willys Jeep Parts Tech:
It does come with the dash clamps and brackets for the side of the body.

Can you provide the templates for cutting gauge holes and light mounting

Willys Jeep Parts Tech:
We can help with some numbers for salvage yards that could take measurements for you.

I have an unidentified 54 jeep. What I know is that it has the Hurricane Engine and has the following numbers on the frame and above the Water Pump. I would like to get a new body for it but now sure which one would be right. The numbers I have are DWF 03R over the wtr pump, casting number is 807895, I found these numbers on the side of the frame DD 66 44. Can you help me id this jeep so I can rebuild the body?

Willys Jeep Parts Tech:
Please email mike@kaiserwillys.com some images and we can help out.

I have a 1955, and want the military body on it. It is the civilian model, what would I need to do to add the military body to it.

Willys Jeep Parts Tech:
Call us toll free and we can go over options.

Will CJ-3B body parts fit my CJ-5 of the same year (1956)? I specifically want everything foward of the tub itself to look like a 3B (hood, fenders. and front end).

Willys Jeep Parts Tech:
They have a different wheel base so there would be some hurdles to doing this.

I have a 1960 CJ 3B. Observing the replacement tub kit, it looks like you have to a hole for the gas tank fill tube and which is located on the drivers side?

Willys Jeep Parts Tech:
Yes, that is correct. It is a side fill under the drivers seat. There is the filler hole and housing just behind the door opening like original.

Does the kit come with the body mounting hardware

Willys Jeep Parts Tech:
The body mount kits are sold separately. Thanks

What is the outside dimensions of the shipping container?

Willys Jeep Parts Tech:
90x60x29 and 410 pounds

1) does the windshield frame come with the gasket 2) does it have tail light holes 3) if I order all the parts I need will the whole order have free shipping

Willys Jeep Parts Tech:
The weather seals would be separate. You need to drill your tail light holes. As long as it doesn't have tires on there it should go free shipping.

The "Willys" stamped hood and tailgate, together only cost about $75 more than non-stamped. Why does the body kit with stamping cost $900 more?

Willys Jeep Parts Tech:
I think you are looking at body tub v. kit pricing. Please call us toll free and we can help you.

does this tub include the complete tool compartment (lid) already placed? Thanks,Ronald Rhode

Willys Jeep Parts Tech:
Yes, these include the welded in place tool bin.

Does the CJ-3B Body come with the opening for the gas filler?

Willys Jeep Parts Tech:
Yes, this will have the opening for it like original.

are the knock outs for gagues in place

Willys Tech:
You will have to cut the gauge holes on the CJ-3B due to early/late style variations.

What color are the straps?

Willys Tech:
These are OD green. We can custom make in a number of different colors though.

Is the emergency break recess molded into the dash? Picture does not shoe the recess.

Willys Tech:
The CJ-3B used a few different version dashes. The recess has to be made.

This is the same thickness as the original sheet?

Willys Tech:
Yes that is correct. They are to original thickness.

I have a 1963 Jeep CJ5 and would like to change the body type to the CJ 3B. Is this possible?

Willys Tech:
They have different wheel base and length. I would put a CJ-3B body on a CJ-3B chassis and a CJ-5 body on a CJ-5 chassis.

can u tell me what the cost would be to build a complete willys from the ground up with all military options?

Willys Tech:
Please call me toll free. We can help.

in the picture the dash is not precut for guages,is th picture correct or does the holes come precut

Willys Tech:
That is correct, you have to cut your holes out. Early and late CJ-3B's used differnet dash configuration.

do they come in right hand body tub

Willys Tech:
These are all left hand drive.

CAN I PUT YOUR CJ3B BODY ON A 1963 CJ5 FRAME? LOOKS TO ME LIKE IT WILL WORK, WHAT DO YOU THINK? ALSO, I NEED A SOLID TAIL GATE 1973 CJ5 BODY. CAN YOU SUPPLY? THANKS IN ADVANCE FOR YOUR REPLY AND GOD BLESS!!

Willys Tech:
Im sure it would work with some modification. They have a 3.5 different wheelbase. Please call us toll free. We are more than happy to help out.

What color and what material

Willys Tech:
These are the original canvas olive drab.

IS THE GRILL ALSO STAMPED?

Willys Tech:
We do carry stamped grilles as well.

can i buy only the strap??? without the eyelets and brackets???

Willys Tech:
Sure. Please call us toll free.
