Complete Master Brake Overhaul Kit 11"
Fits 46-64 Truck

Part # BRAKE4WD

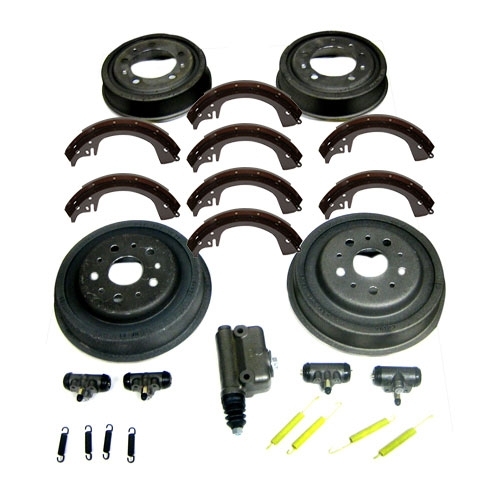

New Complete Master Brake Kit 11"

Replace your over turned, bent, worn out, greasy brakes today and get the whole thing done at once. Comes complete with:

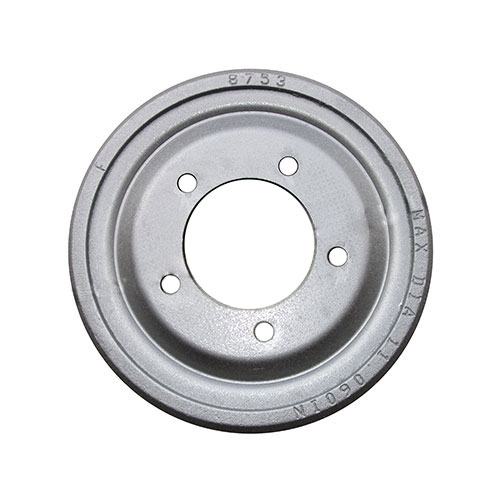

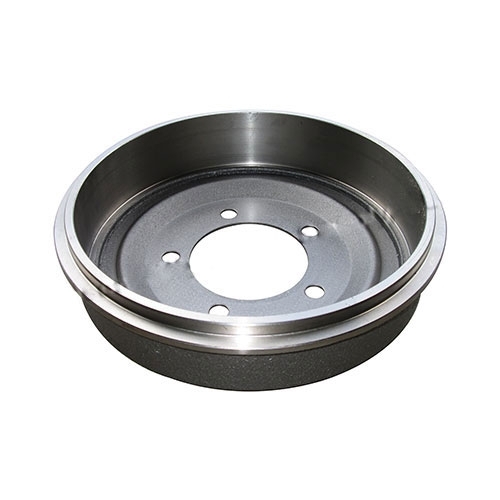

New Brake Drums (front and rear)

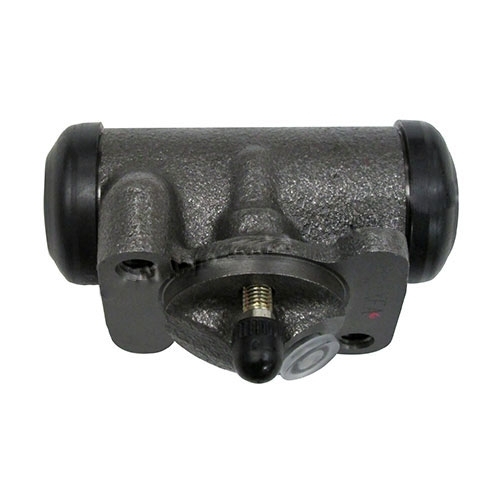

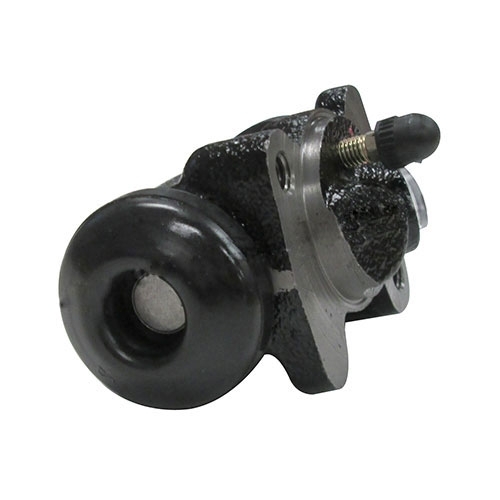

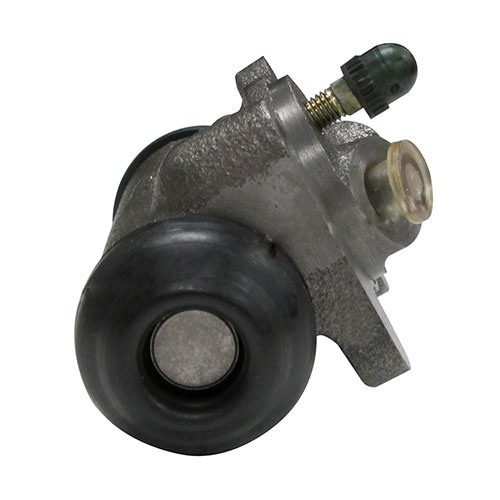

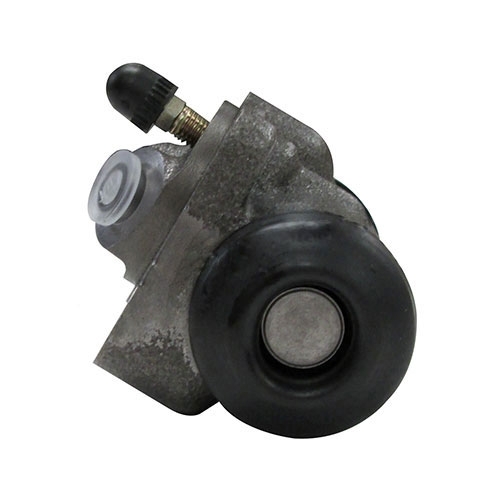

New Wheel Cylinders (front and rear)

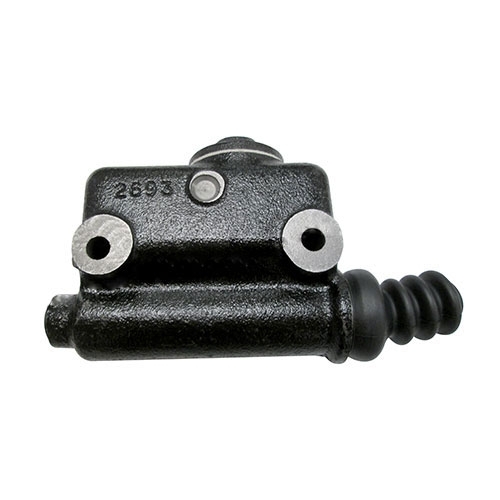

New Master Cylinder

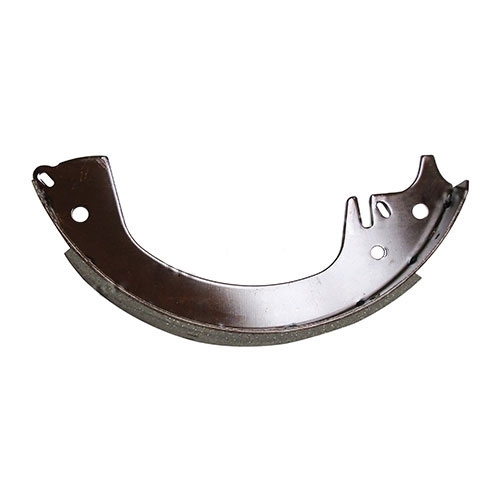

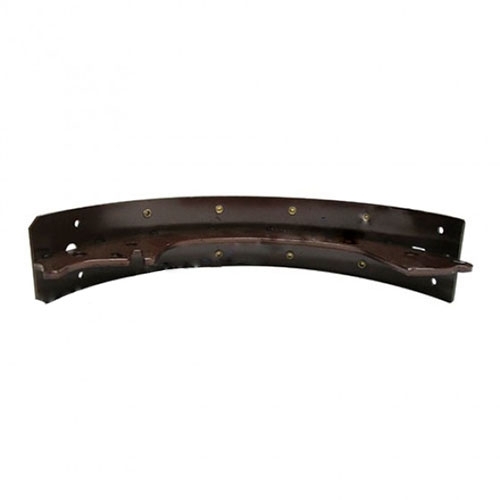

New Brake Shoes (front and rear)

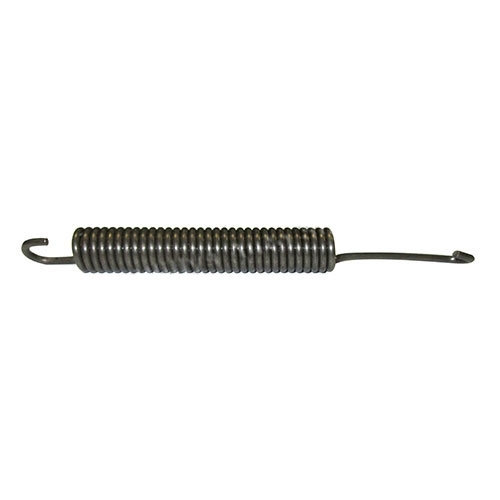

New Upper Return Springs (front and rear)

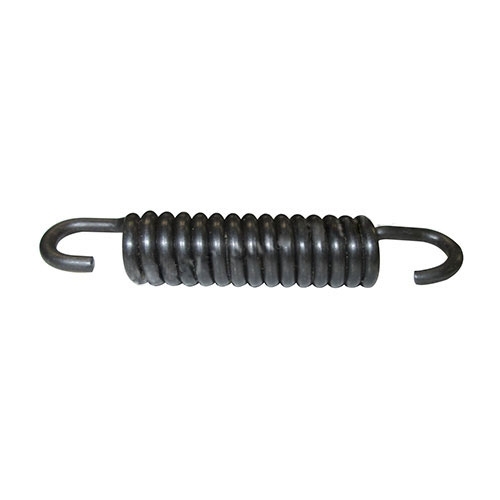

New Lower Return Springs (front and rear

Fits:
46-64 Truck

Part # Price
BRAKE4WD

$599.99

MSRP:

$599.99

MSRP:

1 Item has been added to your cart!
Close

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

Hi There , complete master master brake overhaul kit 11inch are these 11x 2.5 inch drums ? mines 2 wheel drive 1950 truck not 4wd is this kit for both ? regards Neil

Willys Jeep Parts Tech:
The 2x4 Truck still used the same 11" brakes that the 4WD trucks used.

Can i use dot5 brake fluid?

Willys Jeep Parts Tech:
The Willys recommended fluid is Dot 3

Will this fit a 1967 jeep cj5

Willys Jeep Parts Tech:
No, you have 10" brakes on your CJ-5 in that year. Give us a call and we can help.

Can i order with out master cylinder

Willys Jeep Parts Tech:
Yes, please call us toll free.

Do you consider the 46-64 Truck to include the FC150 or FC170? They all have the same Dana 53 rear axle, but, don't some of the trucks have Dana 25's or Dana 27's instead of the Dana 44 up front? Are there similar issues with the master cylinder?

Willys Jeep Parts Tech:
No, the FC's are different in alot of ways. Please email mike@kaiserwillys.com to help with any questions.

Dose it fit a international 1950 pick up truck

Willys Jeep Parts Tech:
As long as that vehicle used the same brake set up as the Willys Truck and Station Wagon.

Compatible kit for a 1966 jeep wagoneer?

Willys Jeep Parts Tech:
Email mike@kaiserwillys.com some pictures of your vehicle and we can help you ID. Thanks!

Would this work for a ‘57 CJ5 looking to convert and beef up from 9” to 11”?

Willys Jeep Parts Tech:
Yes, as long as you have the matching backing plates. We can help too. Thanks!

Will this work on a 63 FC150? I saw that it works for a 61 just want to make sure

Willys Jeep Parts Tech:
Yes, that is correct. The brakes are the same.

looking at this. my front drums have the 4-wheel hub assembely on them. does that come off to go on the new set? or do the front hubs look different then the picture shown?

Willys Jeep Parts Tech:
You will press your old hubs apart and press them onto the new drums with a hydraulic press. We have new hubs as well if need be.

Will this kit work for a 1964 Kaiser Jeep J200 pickup?

Willys Jeep Parts Tech:
Sorry, the J-series is different.

Can you give me a quote on this kit with out the master cylinder add the cam adjusters for all four wheels

Willys Jeep Parts Tech:
Sure, we can work this up. Email me your shipping address and I will email you a quote. mike@kaiserwillys.com Thanks

will this work on a 64 j200? has the tornado ohc 230 and the T90 column shift. it's all factory as far I can tell. I think it has two brake master cylinders as it's not power assist. if not do you have any thing that will work for me? thank you millions

Willys Jeep Parts Tech:
Please send mike@kaiserwillys.com a picture of your current brake set up and we can help out. Thanks!

Can you give me a quote on the brake kit for a1949 truck sent to Canada alberta

Willys Jeep Parts Tech:
Please email mike@kaiserwillys.com your full shipping address and we can quote you out. Thanks!

I inherited an M38A1 with 11" brakes. As far as I can tell the brakes are from a 1964 FC150. This kit looks right except for all my wheel cylinders have a diagonal bolt pattern and these appear to be horizontal. My right front wheel cylinder has the part number FD-14203. Is this kit the correct one for me?

Willys Jeep Parts Tech:
Sounds like its not off a FC then. Please email mike@kaiserwillys.com your brake set up and I can ID for you.

Will this kit fit a 1949 truck with the Timken split housing rear axle?

Willys Jeep Parts Tech:
Yes, it is the correct kit.

Will this 11" kit work on a m38

Willys Jeep Parts Tech:
Yes, if you have Willys Truck or Willys Station Wagon brake backing plates. We can get you good used. Call and as for Mike M.

I have 1955 M38A1. Would like to upgrade to 11 inck drum brakes. Will this kit work, and can I purchase backing plates from you also?

Willys Jeep Parts Tech:
We can get you good used backing plates. Please call us toll free. Ask for me Mike M.

Will this kit work on a 1961 FC 150 or do you have a complete brake overhaul kit for that vehicle?

Willys Jeep Parts Tech:
yes, this is the same kit.

I have a 61 overland, and I'm getting ready to start chassis restoration. I want to stay with drumb brakes front and back for now. I want to overhaul brakes completly and upgrade with new double master.Do you sell the overhaul kits without the standard master?Also I may change the front brakes latter to disc, which master cylinder should I go with?

Willys Jeep Parts Tech:
We can swap out the master cylinders for you and set you up with a prop valve to accommodate. Please call us toll free and we can help.

I have 11' brakes on a cj2a. I bought them several years ago as a kit. they are different from the early pu/sw in that they are not anchored on the bottom but have a star adjuster like later brake systems. What jeep do they come from and do you carry the parts

Willys Jeep Parts Tech:
Please email mike@kaiserwillys.com a picture of the set up and I can ID for you and help get the parts for them. Thanks!

will i need new back plates to put this on a cj3a and will my stock wheels still fit ?

Willys Tech:
Your stock rims should work fine. Yes you will need new backing plates to run 11 brakes on a CJ-3A.

Brake overhaul kits. 1959 CJ5, Measured across the brake shoes = 11. Have they have been swapped out at one time or another? The 11 inch kit indicates 46-64 truck, not the CJ5. I've already order the seals, etc. will they work?

Willys Tech:
You don't measure brakes across the shoes. Always measure the inside diameter of the brake drum itself (machined surface to machined surface) Please email us pictures of your brakes and we can ID for you what you have on there.

Can you guys set me up for rear overhaul only.thanks

Willys Tech:
Sure. Please call us toll free. We can work it up for you.

i have a 1953 jeep m38a1 but it has 11 in drums on the in side so i dont know if they are differant axles but the overhaul kit should work if they are 11in right ?

Willys Tech:
Someone put unoriginal brakes on your vehicle. Please call us toll free. We can help you ID what you have get you the right parts.

Is this a direct bolt on kit that would replace the 9 drums on a 1947 CJ2A to the larger 11 drums?

Willys Tech:
You will need different brake backing plates for a CJ-2A. Please call me toll free.

will this kit work on a 1952 m38a1

Willys Tech:
Yes you can convert over with backing plates.

Will this kit work to convert my 9 brakes to 11 on my 43 MB?

Willys Tech:
Yes it will work just fine if you get TR/SW brake backing plates.

My Willys Truck is a 1960 model, built in Australia, could you confirm that this break kit would be the correct one. It is right hand drive with Tornado 230 engine.

Willys Tech:
Yes it will be the correct one for you.

Do you offer any 55 4wd truck brake overhaul kits without master cylinder included. I have installed pedals & master cylinder from a chevy p/u dont need master cylinder

Willys Tech:
Sure. Please call me toll free. Im more than happy to help out on this.

Do you offer any brake kits without the mastercylinder For 55 willys pu

Willys Tech:
Sure. Please call me toll free.

Is the BRAKE4WD overhaul kit available with the dual master cylinder?

Willys Tech:
Sure. Please call us toll free. Thanks!
