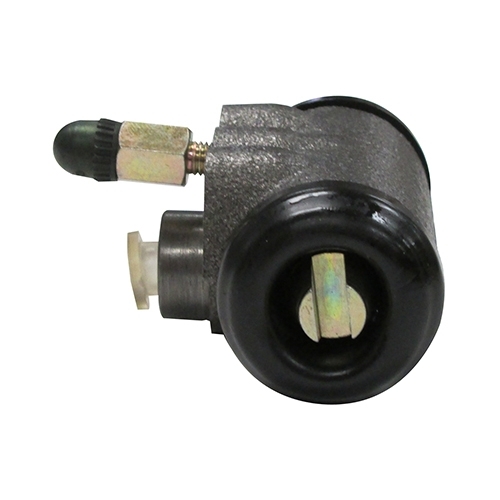

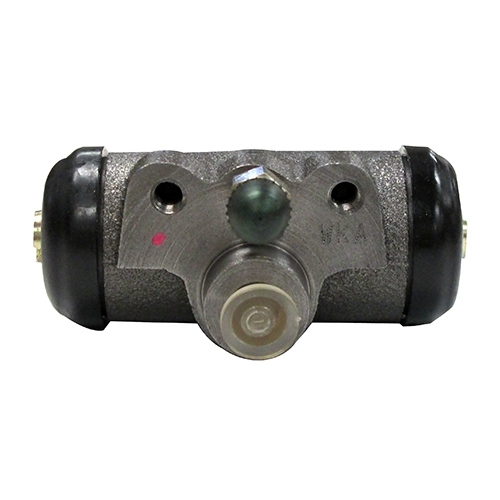

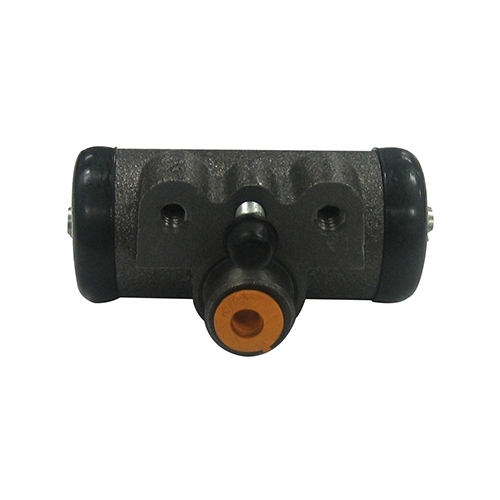

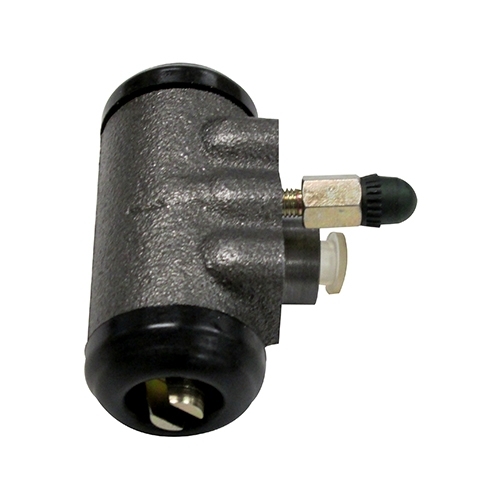

Front Wheel Cylinder 1"
Fits 41-53 MB, GPW, CJ-2A, 3A, M38

Part # A1484

New Replacement Front Wheel Cylinder 1" (2 required per vehicle)

Direct replacement for those corroded, over used brake wheel cylinders. Comes complete with bleeder.

Fits:
41-45 MB
41-45 GPW
46-49 CJ-2A
49-53 CJ-3A
50-52 M38

Part # Price
A1484

$25.99

MSRP:

$25.99

MSRP:

Call for Details

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

what is the size of the bleeder...1/4" or smaller?

Willys Jeep Parts Tech:
1/4- 28

I'm rebuilding a 1952 M38A1 and I put in the new front wheel cylinders and new pads and had the hubs turned, now the hub dosen't want to go over the pads. Looks like the 1" cylinder is pushing the pads to far out. Not sure what to do at this point. Should I use the rear cylinder on the from to give me more room? I don't see any way to adjust the pads, I didn't have this issues with the rear. Thanks.

Willys Jeep Parts Tech:
If the drum is hitting it then make sure to adjust your brake shoe eccentrics properly. Each wheel individually. Then compress the shoes to force any fluid out back into the master cylinder. It should go then.

CAN I USE 1 INCH BRAKE CYLINDERS ON THE BACK BRAKES AND 1 INCH ON THE FRONT?

Willys Tech:
I suppose you could but Im not really sure if you would get anything out of it.

Does Bleed screw come with wheel cylinders?

Willys Tech:
Yes these do come with the bleeder.
