Shop Kaiser Willys

Fuel Tank Sending Unit (6 or 12 volt)
Fits 46-64 Truck

Part # 914849

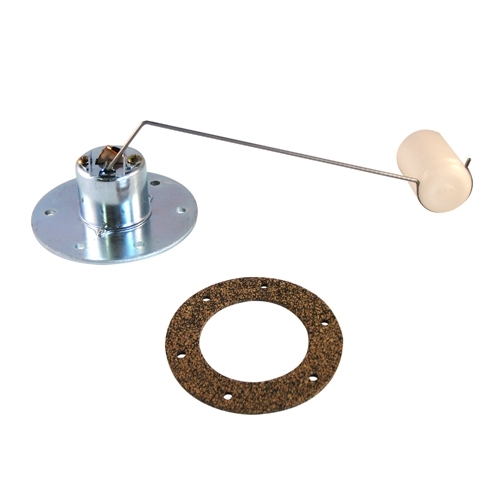

New Fuel Tank Sending Unit

Comes complete with mounting gasket. Float sits inside tank to give accurate reading to gauge. For 6 or 12 volt systems. Proper arm length guaranteed for a sure reading.

46-64 Truck

Part # Price





1 Item has been added to your cart!

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

Is this 5 or 6 hole. I have a 1950 1/2 converted to 12v. And Does gasket come with unit?

Willys Jeep Parts Tech:
This is a 6 hole sending unit and it DOES come with a gasket.

Do you have the screws for the sending unit ?

Willys Jeep Parts Tech:
B0306 is the part number.

On this sending unit what are the measurements of the arm from the unit to the float? I am trying to find a unit that will fit my M170 fuel tank.

Willys Jeep Parts Tech:
Please email the exact measurement you need and we can help you out. Thanks!

Will fuel gauge 640763 work with this sending unit 914849?

Willys Jeep Parts Tech:
These two are not typically used together but you maybe able to modify it to work. Thanks

Will this float work in diesel fuel?

Willys Jeep Parts Tech:
I would assume so but they are made for gasoline engines.

If i order 914845A &914849 do they work together?

Willys Jeep Parts Tech:
Yes, these two work together. Thanks

I ordered 640694 sending unit. I am restoring a 59 DJ3A. The tank is in the rear and the unit I ordered is not the right one. How long is the arm on #914849? The one I took out is a 6 hole unit. it has a cork float and the arm length is 8 inches from the bend point to the center of the float. Any suggestions?

Willys Jeep Parts Tech:
Please call us toll free. We can help you get the right sending unit for your DJ-3A.

Can the ohms on this sending unit to adjusted to have accurate readings for an after-market gas tank?

Willys Jeep Parts Tech:
No sorry, OHMs cant be adjusted. You can adjust the tabs that the arm bottoms out on however to get inside a range and fine tune

Hi, at the time of ordering, should I indicate that needed 12 V? Is it plastic or brass float? Thanks.

Willys Tech:
These work on both 6volt and 12volt. They have a high quality plastic float.

I have a 1971 Jeep Commando, will this replace my 6 hole gas tank sending unit?

Willys Tech:
Yes as long as you have the 6 hole sending unit.

does this sending unit also have pick up tube for fuel line.

Willys Tech:
They never used that with the sending unit originally.

What are the Ohms on this sending unit full and empty?

Willys Tech:
8-10 Full and 70-80 Empty
