Shop Kaiser Willys

Master Clutch Bellcrank Repair Kit
Fits 46-71 CJ-2A, 3A, 3B, 5, M38, M38A1 (4-134 engine)

Part # 642624K-2

New Replacement Master Clutch Bellcrank Repair Kit

Replaces your greasy, worn out clutch bellcrank hardware. Ensure proper shifting.

Includes:

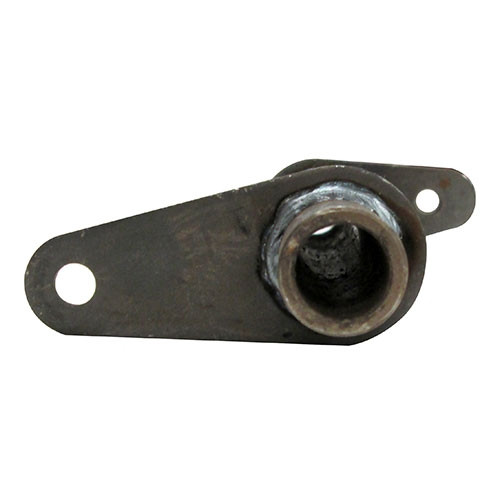

New Clutch Release Bellcrank
New Clutch Bellcrank Felts (2)

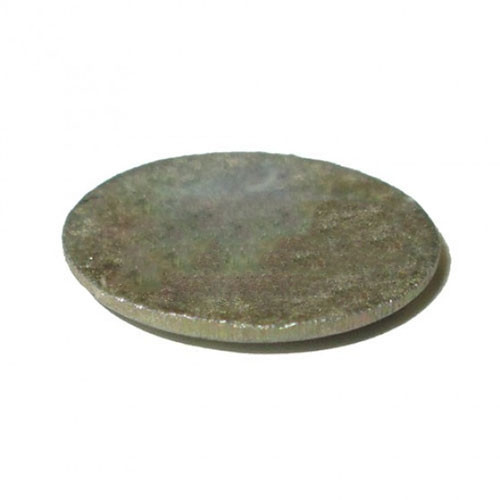

New Clutch Bellcrank Steel Discs (2)
New Clutch Bellcrank Springs (2)

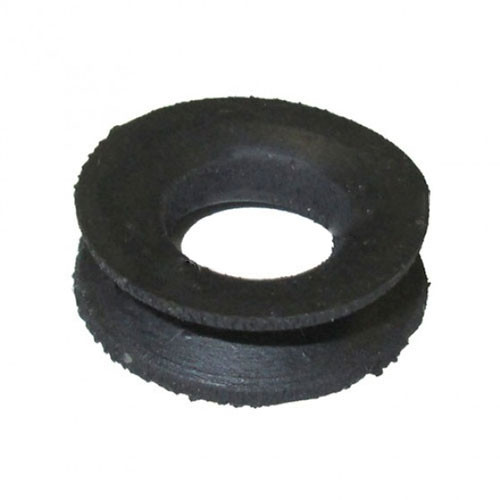

New Clutch Bellcrank Oil Seals (2)
New Inner and Outer Clutch Release Pivot Studs (2)
New Clutch Pedal Arm to Cross Shaft Rod
New Clutch Release Cable

Application
4-134 engine

Fits:
46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
55-71 CJ-5
50-52 M38
52-66 M38A1

Part # Price
642624K-2

$49.99

MSRP:

$49.99

MSRP:

Call for Details

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

What lubrication is used on the felt pads ??? Why 2 springs ??? I only show 1 used in the Z rod. Thanks

Willys Jeep Parts Tech:
We use heavy duty axle grease. Really it is only 1 spring. We usually try to get an extra on the other side for tighter tension on the linkage.

Where do I find clutch linkage clevis pins for 48 CJ2A?

Willys Jeep Parts Tech:
Here a link to the clevis pin: https://www.kaiserwillys.com/emergency-brake-clevis-pin-fits-46-66-cj-2a-3a-3b-5-m38 Thanks

Is this kit used on a 1951 pickup. The clutch release bellcrank is to short. Is there another kit for the pickup. Thanks

Willys Jeep Parts Tech:
No, this kit is not for the Willys Truck. Some of the items will work but some will not. If you have a a 4 cylinder then this is the correct bellcrank - 642952. If you have a 6 cylinder then this is the correct numbers - 923132. Thanks

Would this kit fit my 68 CJ5 with the factory 225 v6? If not, do you have a kit for the v6s? Thanks

Willys Jeep Parts Tech:
No, this kit is 4 cylinder only. Give us a call toll free and we can work a kit up for you. Thanks

Would the seat frame bottom metal pan be needed with these or does the plywood do the job?

Willys Jeep Parts Tech:
We can do it complete with the plywood pan and then the metal pan would not be needed.

For a cj2a what is the correct order of the small clutch bell crank components? (springs, felt pads etc)

Willys Jeep Parts Tech:
https://www.kaiserwillys.com/diagram/cj-2a-diagrams/clutch-diagrams-willys-cj-2a/clutch-control-41-71-willys-jeep/clutch-control-41-71-willys-jeep Here is a link. spring, disc, felt, seal, stud.

Does this kit work with the t98 transmission?

Willys Tech:
Sorry these really is only for the vehicles listed above.

When I took my cluth bellcrank apart there was only one spring, no felt, disks or seals. My question is why is there two of everything in the kit I bought? do both sides need the felt, spring and disc? or just the long side? Thanks

Willys Tech:
Some take 2 springs some only take 1. We provide extra hardware. You for sure want to have the felt on both sides.

I have a 53 cj3b, do you use both springs on both ends of the bell crank it seems like there is room only on the one end, the cotter pin holes are not the same distance on both ends?

Willys Tech:
On alot of vehicles only 1 spring is needed for tension.

Please inform me the long size clutch release cable in stock # 642624k-2 in kit # 7 because I need measure 10-1/4

Willys Tech:
Yes that is correct.

I bought this kit. It has two loose pivot balls included - one is black anodized and the other is plated. Which is the inner and which is the outer?? Thanks, Jeff

Willys Tech:
Part number: A181 is the inner & A179 is the outer (the one with the bracket).

I have a CJ-3a frame with a T-90c-148B (the markings on its side). When I put a new cross tube on the pivots don't line up. Should I be putting the engine in first , then aligning the cross tube. Also the clutch cable is very close to the trans, do I have the cross tube in the wrong way?

Willys Tech:
Sounds like you have it in the wrong way. I would take another look at it and adjust your clevis as well.

assembly order for control arm parts

Willys Tech:
Working inside to out: cotter pin, spring, disc, felt, grease retainer, pivot.

what is the total length of the bellcrank?

Willys Tech:
They are 8 just like original.
