Shop Kaiser Willys

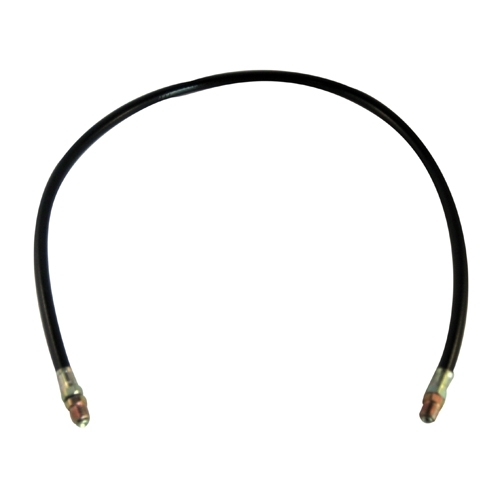

Oil Filter Inlet Hose 30"
Fits 50-66 CJ-3B, 5, M38A1

Part # 647585

New Replacement Oil Filter Inlet Hose

Proper length hose with fittings. Goes from top inlet on oil filter canister to port just in front of fuel pump on block. Measures 30" in length.

Application
4-134 F engine

Fits:
53-64 CJ-3B
55-66 CJ-5
52-66 M38A1

Part # Price
647585

$15.95

MSRP:

$15.95

MSRP:

1 Item has been added to your cart!
Close

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

Does this oil line (647585) have different sized fittings? I bought a new oil filter base and oil lines, but the fitting is too big to thread into the oil filter base. I have a 1966 CJ5 with a 4-134 Hurricane engine. Thanks

Willys Jeep Parts Tech:
They do not have different sized fittings. But the fitting to the canister is A210

Would this hose fit a 1943 jeep too?

Willys Jeep Parts Tech:
647584 is what you want for the Willys MB and GPW.

The existing hose on my engine (I believe from a 50's CJ3B) is over 30" long. It runs from the port on the block, which is behind the fuel pump, around the front of the engine to the oil filter. Is a longer hose or an adapter available?

Willys Jeep Parts Tech:
I think someone has misrouted it thru the years. Email mike@kaiserwillys.com and we can help you.

can you get the rubber boot and retainer like comes in this kit i dont see a listing

Willys Jeep Parts Tech:
Try part numbers: 640877 or 640888 & 640708

I ordered this 647585 inlet hose for my 54 M38a1. It fits into the side of the black next to the fuel pump but doesn't fit into the oil canister at the top. Its too large? Am I ordering the wrong one? Which one should i order?

Willys Jeep Parts Tech:
You need the proper fitting on the canister. Please call us toll free and we can help you out. Thanks!

I need a oil pressure hose, engine to steel tube on firewall for my 1956 CJ-3B will the CJ2a ,CJ3a hose work?

Willys Tech:
Yes, the Al198 will work for you.

I have a cj-2a but the Oil filter inlet hoses made to fit my vehicle are impossible to put on without taking the engine out. I need a longer hose than 21. Does this hose have the same fittings on the ends as the Oil filter inlet hose for the cj-2a?

Willys Tech:
Sounds like you have something unoriginal on there then. Please call us toll free. We can go over it.

I have another question, my jeep, I believe is a 4-134 F engine, has both ends of the line tapered I believe. I ordered an oil line for it before but when it cam in it had both ends like a brake line tightening style and it was to big to fit into the jeep. is there a way I can be sure of the engine model before purchasing more parts? I can not find the model number but I found the serial number. thanks for all the help.

Willys Tech:
Willys used a few different style hoses and fittings thru the years. What we sell is the most common pitch configuration used. All you may have to do get a 49 cent adapter fitting.

Hello. dose this oil line have a tapered end or dose it have like a flange on the end and a separate threaded piece to tighten down on?

Willys Tech:
Yes that is correct, one end is stationary and the other a swinel stud. They are 1/4 pipe thread.

Are there swivels on this hose and also the outlet hose for easy installation? Also, on my CJ5, there is a short hose (about 10) that connects to the inlet hose. I assume this was not original and was done later?

Willys Tech:
These are the original most common pitch and ends used on these Willys Jeeps.

NEED A LONGER HOSE FOR A 1949 .Are the fittings the same as the 24 inch?

Willys Tech:
Yes it should work just fine.
