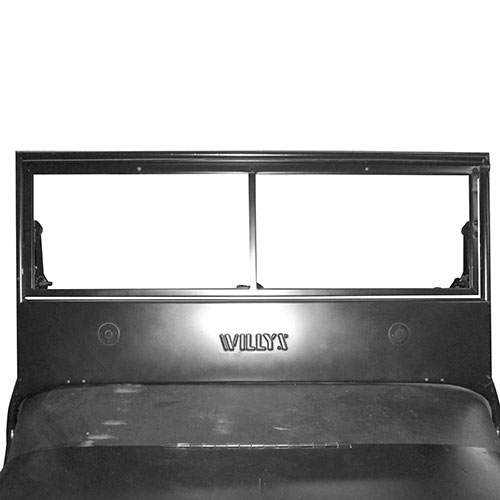

Replacement Steel Windshield Frame (Inner & Outer)
Fits 46-49 CJ-2A (With "Willys" Logo)

Part # DMC663628

New Replacement Steel Windshield Frame. (With "Willys" Logo)

Faithful reproduction steel frame. Accepts original style top mounted wiper motors. Complete inner and outer windshield assembly. Comes painted in primer.

46-49 CJ-2A


Part # Price





1 Item has been added to your cart!

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

On top of the windshield, is there a channel for us to put on a summer Bimini top

Willys Jeep Parts Tech:
They never did that on a CJ-2A. They used 10 cap stand studs which we sell.

Under the window is about a 6 inch wide space (where the willys logo is located) is covered with a wooden layer on my jeep. Is this normal? What should this be? I am thinking someone added this and the surface is typically metal and not wood.

Willys Jeep Parts Tech:
Email some pictures so we can see what all you have going on?

I have a 41 to 45 Willys jeep and the windshield part # is A3210 and I was wondering if a 46-49 CJ-2A, part # DMC663628, would fit it? The A3210 windshield is short and hard to see out of and also can you send me the specs on both windshields? Thank you Patrick

Willys Jeep Parts Tech:
Yes, it all mounts to the cowl the same.

What size is the package/boxed dimensions?

Willys Jeep Parts Tech:
Weight 28.0000 Dims l: 51 w: 38 h: 12

Why is this product $70.00 more online as compared to your 2022 catalog? Which is correct? I need to replace mine and now I find it’s even higher priced.

Willys Jeep Parts Tech:
It actually has gone down, we are now able to get free shipping on it so the overall cost has gone down.

How much does this iteam weigh?

Willys Jeep Parts Tech:
Approx 30 pounds boxed.

Does this frame have the holes predrilled for the rubber seal between the frame and body?

Willys Jeep Parts Tech:
Yes this does have the holes predrilled.

Where exactly does the New Replacement inner windshield Rubber bumpers, part # 664261 go on the windshield. Do you have a diagram/picture of its placement? Thanks

Willys Jeep Parts Tech:
There are 2 tabs in the outer frame that they push into. They are in the center bottom of each glass pane. Email and we can send you photos.

Do I need the Weathseal parts #A2250, A2476, A2479

Willys Jeep Parts Tech:
Yes, these are the proper weather seals for this frame.

Does this frame have the special bolts to store the bow poles for the top?

Willys Jeep Parts Tech:
Yes, it has the studs and brackets for the top bow storage on the inside of the windshield frame below the glass.

Does this frame come with the latch to secure the inner frame?

Willys Jeep Parts Tech:
Yes, they will come with it.

Can't tell and you don't say, does it include the glass?
No, it does not include the glass. We do sell all glass separately. Thanks!

How much would it cost to ship it to Mexico?

Willys Jeep Parts Tech:
Give us a call toll free and we can figure it out for you. Thanks

What parts are needed to replace a CJ-2A windshield? Weatherstrips, glass, other parts? Is there a package price?

Willys Tech:
A3210 is the proper part number for the Ford GPW Jeep.

once i get the weather seal for the two pieces of glass on my cj2, what holds the glass in the outer frame? since the weather seal didn't come with my order but is back ordered or something. does the glass fit in a grove or is glued or screwed? i didn't place the order, my nephew jacob in greenville did and sent the order to me, (charles) dan berry in georgia . the order # 205866B is on the packing slip.

Willys Tech:
The glass is held by the inner steel frame. Then the inner frame hinges in the outer steel frame.

so the frame DMC663628 does have adjusting arms but you have to buy the locking knobs and star washer. is that all? please let me know. it would be nice if you put all parts on the page, listing them with the illustration and the cost of each.

Willys Tech:
Yes, you will need the adjusting washers we have as well. Part number: 663706

Will this fit on a CJ3A tub? I know it is not the correct one, but I like this style.

Willys Tech:
Yes it mounts the same.

Which is the shipping cost , to Brasil , City: Curitiba, State : Parana ( 81530-340)?

Willys Tech:
Please email your full shipping address and part numbers you need and we can quote you out.

I an M38A1 but I really like the ventilating windshield. Would it be possible to put this frame on my A1?

Willys Tech:
The M38A1 is designed totally different. It really wouldnt work. It would on a M38 however.

My 1946 CJ2 has two cans mounted on the windshield inside, one on driver side and one on the passenger side. They will hold a drink container and or anything you want. My question, is this original equipment? If so do you have these in stock?

Willys Tech:
These are something homemade and not original but im sure nice to have.

will thi fit on a 1964 jeep

Willys Tech:
No this is only for the vehicles listed above.

Does this frame come with the whelting for the glass? Thanks

Willys Tech:
This is for the steel windshield frame only. We have all the weathseals if you need them too.

Do you guys sell the old school hand powered wind shield wipers ?

Willys Tech:
Sure try part numbers: A11433 or MANWIPER
