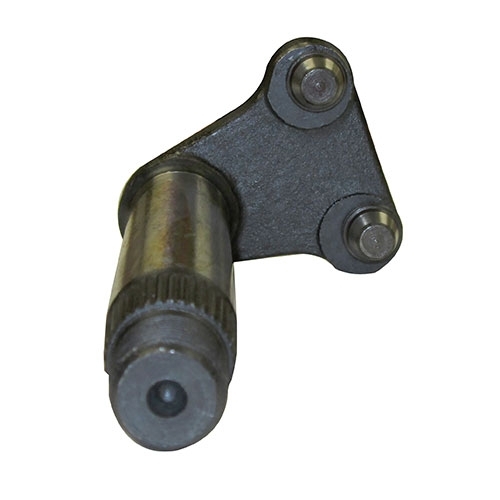

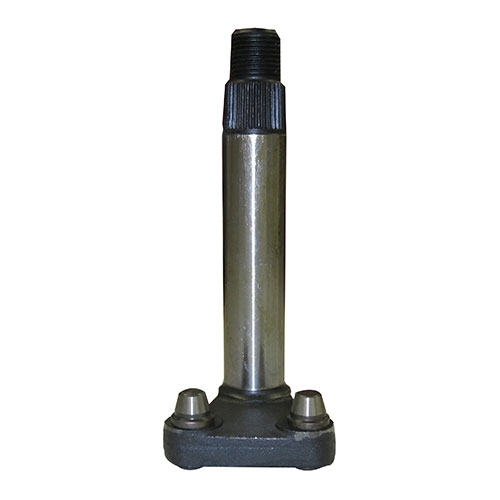

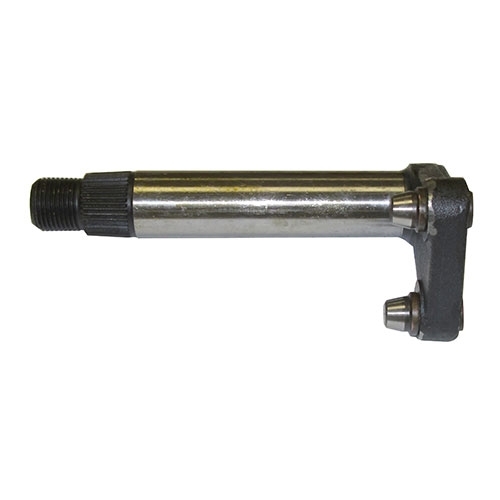

Steering Gear Box Sector Shaft Repair Kit 15/16"
Fits 50-52 M38

Part # 804533K

New Steering Gear Box Sector Shaft Repair Kit (1 required per vehicle)

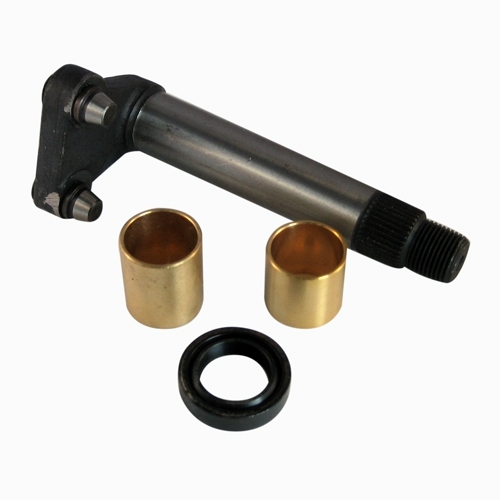

Complete with new 15/16" diameter sector shaft, bushings, and oil seal. Eliminates slop in your Ross steering gear. The best place to start when your steering is loose.

Fits:
50-52 M38

Part # Price
804533K

$89.99

MSRP:

$89.99

MSRP:

1 Item has been added to your cart!
Close

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

I have an M38 and bought a new sector shaft. When I installed and torqued the original Pittmann arm, it only engaged 1/2 of the indexing grooves leaving no room for a lock washer with adequate nut threads. Any suggestions?

Willys Jeep Parts Tech:
They have to go on very tight. Please give us a call toll free to help out.

What do you recommend for end play on a new sector shaft with a new worm on an M38?

Willys Jeep Parts Tech:
I dont think the book really gives a spec on that. Your sector shaft and bushings should be tight in there with little to no slop.

i have a sector shaft stamped ta124999. is kit number 804533k the correct replacement ?

Willys Jeep Parts Tech:
Please email mike@kaiserwillys.com some more vehicle information and we can go from there to help out.

Do I need to ream the bushings once they are installed?

Willys Jeep Parts Tech:
Yes, that is correct.

Am rebuilding my steering box on a 1952 Willys Truck. My box has a 15/16" sector shaft with 1 1/2" pin centers. I suppose, in the past, someone swapped in a M-38 box??? Can you tell me the overall length of this sector shaft? WHAT I HAVE BOX # TA1303200 COVER # TA125999 SECTOR # TA124999 MY SECTOR IS 7 1/4" OVERALL-BUTTON TO END OF THREAD. THANKS MUCH!

Willys Jeep Parts Tech:
The overall length is 6-7/8" for the M38

Hi. I' m french customer. Can you tell me what is the external diameter of the bushings please. I buy two bushing but i can assemble it without tool. Thank you

Willys Jeep Parts Tech:
I do believe this is an .075" thick bushing

I received my steering sector kit for my gear box the long bushing has no hole for oil passage do I need to drill it.

Willys Jeep Parts Tech:
They are a self lubricating bushing.

upon disassembly I noticed, underneath the lower bearing there is a "cap" on the bottom of the steering box with a hole in the center from my understanding that is for the horn wires. inside the shaft the horn rod is still there. im not concerned with running a horn however is there a seal that will keep the oil from leaking out of that bottom cover hole? how do I remove this "cap" and do you have a replacement? originally it had grease in it so leaking was not an issue, however upon rebuild id like to run oil.

Willys Jeep Parts Tech:
You need to use a freeze plug on. Or we can get you a good used one.

best way to remove old bushings? I cant get mine to budge

Willys Jeep Parts Tech:
You will want to take a socket the same size the bushing and press it out in a vise.

Can you tell me the pin to pin dimension of the sector shaft pins?

Willys Tech:
1-1/2 center to center like original.

Do you sell the gasket for the steering box cover?

Willys Tech:
I would just use some gasket sealant for that.

Will this shaft fit my cj5 with buick v6 1967, or what will thanks

Willys Tech:
The V6-225 gear boxes take a different one. We have the bushings and oil seals for that one.

Do you have the washer and nut for the shaft end?

Willys Tech:
It really is a local hardware store item. We could probably get you good used if you needed us to.

if i order this, i live on samish island washington state, whats the fastest way to get the 80453kk to me, like yesterday?

Willys Tech:
We can next day air it. Please call us toll free. We are more than happy to help out.

Do you sell the oil seal for the gear box separately?

Willys Tech:
Sure. Please call us toll free.

Will the15/16 sector fit the 1955 m38a1

Willys Tech:
No, this is for M38 only. I do have the ball bearings and bushing for the M38A1 however.
