Shop Kaiser Willys

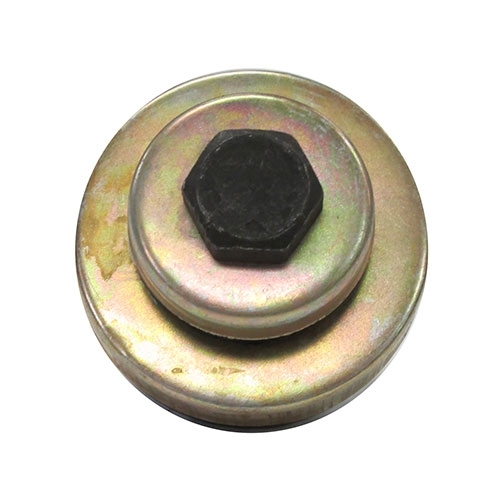

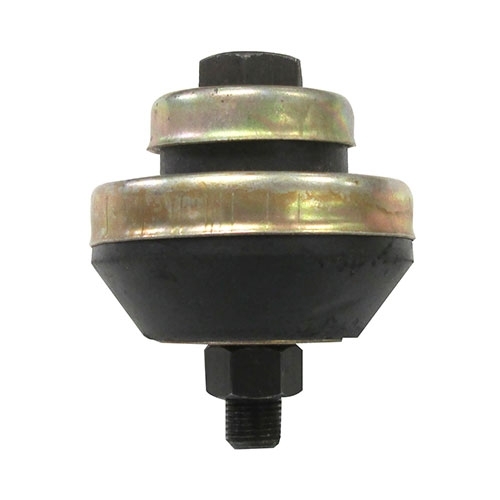

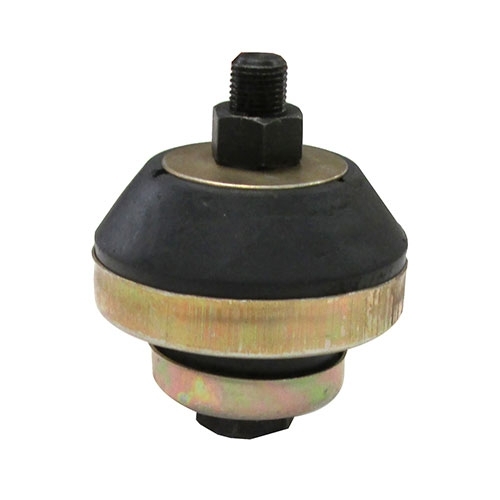

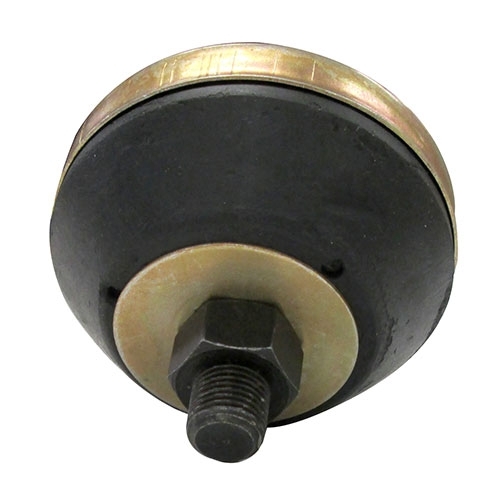

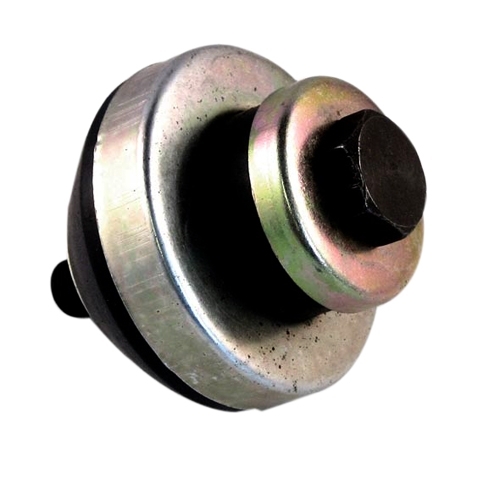

Transfer Case Mount Insulator Kit
Fits 41-71 Jeep & Willys with Dana 18 transfer case

Part # 926671K

New Replacement Transfer Case Mount Insulator Kit (1 required per vehicle)

Comes complete with bolt and steel support.

Application
Dana 18 transfer case

Fits:
41-45 MB
41-45 GPW
46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
55-71 CJ-5
50-52 M38
52-66 M38A1
46-64 Truck
46-64 Station Wagon

Part # Price
926671K

$17.99

MSRP:

$17.99

MSRP:

1 Item has been added to your cart!
Close

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

I'm wondering if maybe this is some different version? The bolt doesn't fit in the transfer case hole and there is a "cup" welded to my frame that held the previous insulator. The old one seams very different than what I received. Thanks

Willys Jeep Parts Tech:
These are made right. There must be something odd on your vehicle. Email mike@kaiserwillys.com some pics and we can help. Thanks!

Hi I ordered this part from you guys last year and went to instal it and there's no steel cups on the one I have. Did the part change?

Willys Jeep Parts Tech:
The steel cups come with it already attached. Your old one would have had them too.

Hi, regarding install, does the bolt head go on bottom and nut on top? Also, do the two pieces go together (butt up together) between the crossmember and transfer case "tab"? Thanks

Willys Jeep Parts Tech:
The head of the bolt would go down. The rubber goes on either side of the crossmember then.

Will this work for the transfer case with the 225 v6

Willys Jeep Parts Tech:
As long as you have this style round mount it will be correct. Later CJ-5's used a different style.

How do I remove the old mount? I removed the bolt it just doesn't want to come off.

Willys Tech:
It is just a single bolt that holds it in place.

Which side of this faces the transfer case ?

Willys Tech:
No exactly sure what you mean. The metal cup of the insulator will go down into the welded holder on the crossmember.
