Shop Kaiser Willys

1.25 Inch Wheel Spacer Kit
Fits 41-71 MB, GPW, CJ-2A, 3A, 3B, 5, M38, M38A1

Part # 11302

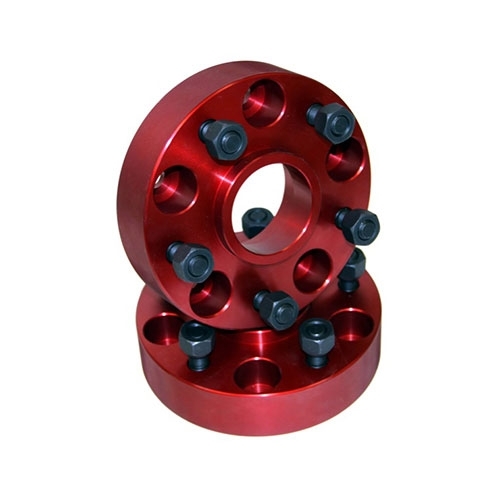

Rugged Ridge 1.25" Wheel Spacer Kit with 5 on 5.5 Bolt Circle

This stud centric spacers space your wheels out an extra 1-3/8" (1.375") to help fit wider tires and give your vehicle a wider track and improved stability.

Wheel studs are grade-8 for extra strength.

41-45 MB
41-45 GPW
46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
55-71 CJ-5
55-71 CJ-6
50-52 M38
52-66 M38A1

Rugged Ridge recommends use of wheel spacers with all suspension lifts to reduce risk of roll over or other accident associated with modifying ride height for increased off road capabilities.

Part # Price





Call for Details

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

Is this a set of 4 spacers?

Willys Jeep Parts Tech:
These are a set of 2

Is this a four spacer kit or a pair?

Willys Jeep Parts Tech:

Will these fit on both front and back? are the centers made to fit on the front larger opening for the IH locking hib?

Willys Jeep Parts Tech:
These will work for front or rear.

I have the original 16 on my 46 cj2a, an like to get a adapter that can adapt down to a new set of 33 that are mounted on tj rims which I think is 4.5 bolt pattern

Willys Jeep Parts Tech:
That you would have to try a local tire shop. They may have something. Or google tire adapters. Im sure there would be something out there.

Do you have something I can use on the left side for the left-handed threads

Willys Jeep Parts Tech:
This will still use your LH studs to attach ok. Then the nuts for the rims would be RH.

Does this part accommodate the 4WD locking hub diameter on front wheels? It appears smaller diameter in picture here.

Willys Jeep Parts Tech:
Yes, you will not have any clearance issues.

What is the diameter of the center hole

Willys Jeep Parts Tech:
I believe 4.25" but will need to confirm.

How many in a kit? the photo shows 2. Also are the thread pattern for driver side left hand thread Still?

Willys Jeep Parts Tech:
This does 2 wheels worth. They are RH thread.

Hi what is the size of the center bore of the wheen on a cj2a is it 4.25” or 4.19”?

Willys Jeep Parts Tech:
The original rims had 4.25 center opening I do believe.

I am repairing a 1943 ford gpw with a disk conversion will these spacers alow us to retain the combat whaeels?

Willys Jeep Parts Tech:
Yes, these should give you the spacing you need.

I have a 48' bantam t3-c trailer with stock axle/wheels. I am looking to run a JK wheel in place of the original wheels (to match my jeep). Would you happen to know if this would be the correct size/type of adapter?

Willys Jeep Parts Tech:
You would want to run a rim with the same pattern and opening as 640800 and have it be a flush mount as well.

Hi I have the front disc kit in my 48' CJ2A. I want to buy the after market 16" wheels (Omix) for it. Will the wheel spacer allow me to do this and if the spacer is hubcentric is the center 108mm or 4.25"? Thanks. Jim

Willys Jeep Parts Tech:
Yes, the wheel spacer will allow you to do this with the front disc kit.

Hello , i want a know about this spacer. The kit whats container for 2 or 4 wheels.

Willys Jeep Parts Tech:
This is for 2 wheels worth.

Looking for spacers with 1 and one half inch stud lengthy to allow for thicker rims.

Willys Jeep Parts Tech:
Sorry, 1.25 is the only spacing we have.

Are there sold in a pair ?

Willys Jeep Parts Tech:
Yes, that is correct. It is for 2 wheels worth.

Will these fit over the 4x4 system in the front on a m38a1 ?

Willys Jeep Parts Tech:
Yes, that is correct.

this will work with stock 16'' rims .

Willys Jeep Parts Tech:
Yes, that is correct.

These will fit a 58 wagon with Dana 25 and Dana 44 right?

Willys Jeep Parts Tech:
Yes, that is correct.

Is there a pair designated for the left side that have the lug bolts with left hand threads or will I have to purchase new right hand nuts. Also is there a chance that I could shorten the turning radius by adjusting the stops on the axle. Thank you James

Willys Jeep Parts Tech:
Sorry these are only going to be RH thread. They work for all 4 wheels.

Dear Mike, how many spacer kit 11302 are required for one jeep. What means "5 on 5.5 bolt circle". Sorry I'm not so experienced with tire and inch. Kind Rechauds Edmund

Willys Jeep Parts Tech:
There are 2 spacers in the kit (2 wheels worth). It is 5 studs on a 5.5" spacing from each other.

Full floater rears and front are they big enough to go over the floaters or ?

Willys Jeep Parts Tech:
As long as you have a matching bolt pattern, these should work for you.

How many spacers are included in the kit?

Willys Jeep Parts Tech:
These are a pair.

Will these work with the 16" rims on a CJ-2A, to adapt the font/rear disc brake conversion kits?

Willys Jeep Parts Tech:
They do have the same bolt pattern.

will these fit the rear of a 1949 Willys pickup?

Willys Tech:
Yes, these should. I believe the pattern is the same.
