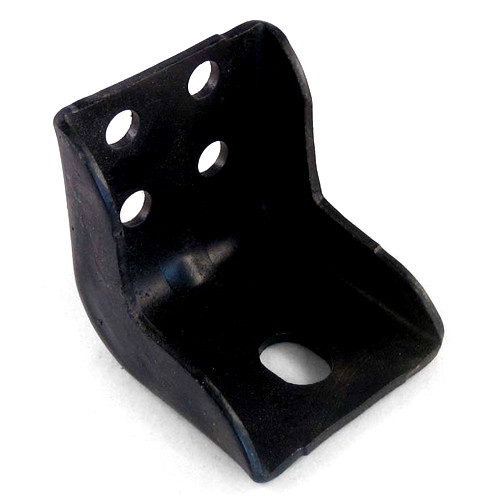

Frame Outrigger Bracket
Fits 41-66 MB, GPW CJ-2A, 3A, 3B, 5, M38, M38A1

Part # 645072

New Replacement Steel Frame Outrigger Bracket. (6 required per vehicle)

Attaches to side of frame rails (3 on each side). Can be bolted or welded in place to support body bracing to frame mounts.

Fits:
41-45 MB
41-45 GPW
46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
55-66 CJ-5
50-52 M38
52-66 M38A1

Product Pricing Table
Part # Price
645072

$26.99

MSRP:

$26.99

MSRP:

1 Item has been added to your cart!
Close

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

Did they eliminate the outriggers for 67 cj6 - I don't see any on the frame - could use them in the rear to keep the bed from bowing because of no outer support

Willys Tech:
You should still have these on the CJ-5 really thru 1971

I have a '54 M38A1. The front right (passenger side) body mount bracket is cracked around the rivets. Will this bracket serve as a replacement? I see the front right bracket is a bit longer than the other brackets. I was concerned whether the bolt hole would line up with the body mount hole. Thanks.

Willys Tech:
Yes this will match up to your existing outrigger on the side of the frame.

My 67 CJ5 is missing the bracket on the rear of the drivers side that the body mounts to. Is this the part that I would need?

Willys Tech:
Yes if you looking for the outrigger bracket on the side of the frame.

Do these come with hardware. If not what size bolts or rivits do I need

Willys Tech:
This is bracket only. The hardware is a local hardware store item.

do you sell the Shock Mount Bracket, i need the one that goes in the chassis, front passeger side!! Thank you

Willys Tech:
I think you are talking about the upper shock mount that welds to the frame. Those are available good used.
