Shop Kaiser Willys

Passenger Side Steering Tie Rod Assembly
Fits 46-71 CJ-2A, 3A, 3B, 5, FC-150

Part # 642057

New Passenger Side Steering Tie Rod Assemby (1 required per vehicle)

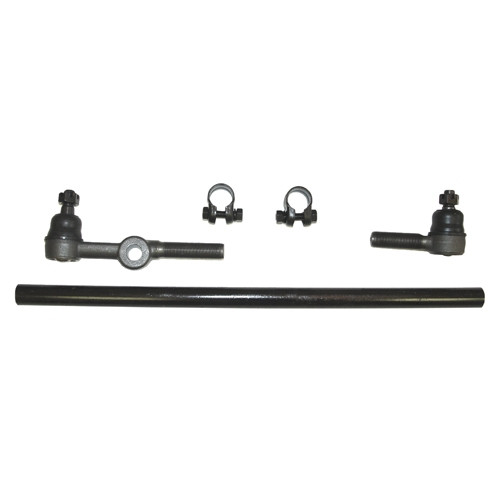

Replaces your entire RH side tie rod assembly. Comes complete with tube, tie rod ends, and clamps. Runs from steering knuckle to hole in steering bellcrank.

Tube Length: 18-3/4" (642059)

Fits:
46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
55-71 CJ-5
57-64 FC-150

Part # Price
642057

$65.99

MSRP:

$65.99

MSRP:

Call for Details

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

Hi. I have a 1966 cj5 with power steering. Will this go from knuckle to knuckle ? This looks like the one on my jeep. But I measured to tube and it is a little over 35inchs. Wich goes knuckle to knuckle. Then another tie rod that goes from the hole in the tie rod end on the right side to the hole in the pitman arm. That tube measures around 22inchs. Can you help me?

Willys Jeep Parts Tech:
No, this is for original steering only. Send us a picture of your steering so we can see it.

Are the ball joints included/installed in tie rods? If so, what make? Thanks.

Willys Jeep Parts Tech:
Yes, the ends are complete.

I have a 48 Jeep willys 4 wheel drive with a Dana front end front axle I need the tie rod tube assemblies what part number is that for left and right

Willys Jeep Parts Tech:
642058 642059

Does this come with the dust boots or do those need to be ordered separately?

Willys Jeep Parts Tech:
Yes, they are included.

Do you know if these parts will fit a left hand drive Mitsubishi Jeep J26. Thanks

Willys Jeep Parts Tech:
Sorry, that I am not sure on.

Hi I am in Australia, will this fit a right hand drive cj3b

Willys Jeep Parts Tech:
Sorry, i do believe the RH vehicles are different.

Will this fit on 67 Jeep commando?

Willys Jeep Parts Tech:
This kit will not work because the tie rods themselves will not fit the Commando but the tie rod ends will. Thanks

I have a 70 -71 cj5 and am having trouble finding this tie rod end assembly that fits my steering. Total lengh that I need is roughty 41 3/4" from tie rod to tie rod.

Willys Jeep Parts Tech:
Sounds like you may have something unoriginal. can you email mike@kaiserwillys.com your set up and i'll take a look.

Good morning, Mike What is the length of this assembly, please ? Pete

Willys Jeep Parts Tech:
It is adjustable on each end. The tube is 18-3/4" like original.

Hi I am restoring a 1967 jeep cj5, no power steering, and the play in my steering wheel is terrible were should i start i haven't tore into the problem yet. I can turn the wheel about three inches before tire movement.

Willys Jeep Parts Tech:
You will want to rebuild the steering gear box and check out your bellcrank as well. Please call us toll free and we can go over. Thanks!

will this fit a 1969 cj5 with the dauntless v6?

Willys Tech:
Yes they are all the same thru 1971

can i get just the tierod end with the hole in it?

Willys Tech:
Its part number: 640178

Will this fit '52 m38?

Willys Tech:
Yes it will work just fine.

You have steering components listed up to 66 cj5. I have a 67 that needs all tie rods and tie rod ends. will they 66 fit on the 67 ? they all look the same

Willys Tech:
Yes they are all the same.

The question was answered as to whether the tie rod ends are greasable but do they have grease zerks? It seems that one would follow from the other but one never knows......

Willys Tech:
Yes they come complete.

Will this fit a '68 axle?

Willys Tech:
Yes, this should be just fine.

The tie rod ends displayed in this picture do not appear to have grease zerks in them, are these graseable? Thanks.

Willys Tech:
Yes, these are greasable.
