Shop Kaiser Willys

Rear Axle Outer Oil Seal w/Gasket
Fits 46-71 Jeep & Willys with Dana 41/44/53

Part # 914802

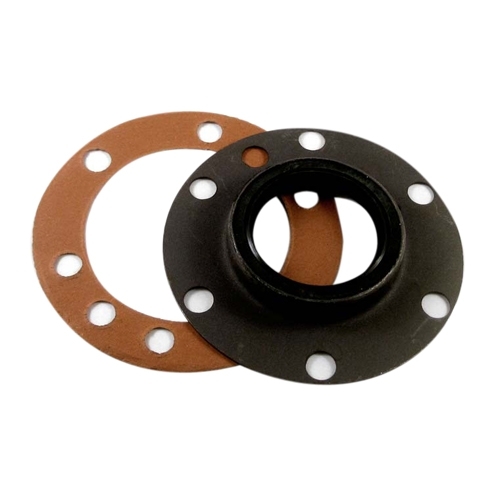

New Rear Axle Outer Oil Seal with (1) Gasket and Mounting Plate.

The seal is the style that is bolted on with the backing plate and seals against the hub.

For 4 wheel drive models only.

Extra gaskets may be required.  See part #942903.

Application:
Dana 41/44/53 Rear
Timken (clamshell) Rear

Fits:
46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
55-71 CJ-5
50-52 M38
52-71 M38A1
46-64 Truck
46-64 Station Wagon

Part # Price
914802

$8.49

MSRP:

$8.49

MSRP:

Call for Details

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

Hi fellas, I have shims on both sides under the seal to Therese end housing, is this correct , if so do you have these metal shims? Thank you!

Willys Jeep Parts Tech:
I think you are looking at a gasket on either side of the plate. Not a shim.

If I order 2 of these today how long before i receive them ? My zip code is 93662 Selma Calif .

Willys Jeep Parts Tech:
You should receive them in about 2-3 days barring any hold ups with the weather. Thanks

Does this fit the Timken rear end?

Willys Jeep Parts Tech:
Yes, that is correct.

I noticed in the video for the seals & gaskets on the rear axle, that you seem to use something on each part that the gaskets contact as some sort of sealant (gray in color). Is this grease or a sealing product like Permatex? Thanks.

Willys Jeep Parts Tech:
Yes, that is correct.

Do you have/can you get the part that goes over the rear outer oil seal gasket? I think it is called the "grease protection flange"??? the ones on the rear of M38 project are really torn up and need replacing. Thanks.

Willys Jeep Parts Tech:
That is used only. Email mike@kaiserwillys.com and we can help you. Thanks!

The diagram shown in the service manual includes 2 gaskets, a seal, and a grease protection flange. Is this single set suitable to replace all of the shown parts?

Willys Jeep Parts Tech:
942903 is the extra gasket you need. The grease protector doesnt really wear and needs to be reused.

When will the 2017 Kaiser Willys calendar be available?

Willys Jeep Parts Tech:
They should be out around the 15th of November. We will have an announcement.

Is this the oil seal that would stop oil from leaking into my rear brake drum on my 62 Willys truck? Do I need to also replace the inner oil seal by the bearing to stop such a leak?

Willys Jeep Parts Tech:
Yes, this will prevent oil from getting to your shoes. There is an inner seal too part number: 644254 for your Willys Truck.

is this enough for 1 side only. thanks

Willys Tech:
These are sold each.
