Rear Axle Inner Oil Seal (2 required per vehicle)
Fits 46-71 Jeep & Willys with Dana 41/44

Part # 640959

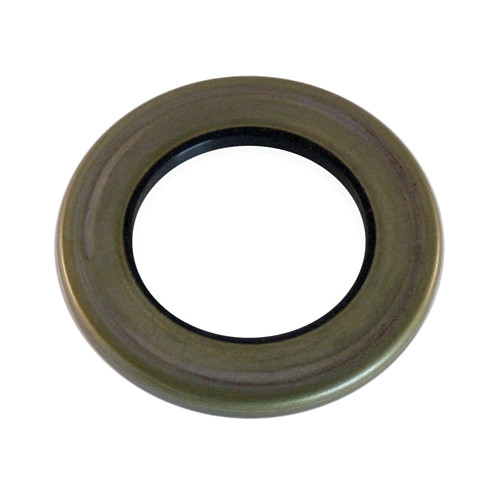

New Rear Axle Inner Oil Seal

Dana 41/44 rear

1 required per side, 2 required per vehicle.

The seal is located behind the axle bearing. Removal of axle shaft is required. It goes at the end of your axle housing tube.

46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
55-71 CJ-5
50-52 M38
53-69 M38A1
46-64 Station Wagon

Part # Price





1 Item has been added to your cart!

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

Do you need to remove the outer bearing race to change this seal or only the axle shaft?

Willys Jeep Parts Tech:
yes that is right. Its in the housing. Bearings are to the outside of it.

Hi This is Seiichi Shioi from Tokyo Japan. I would like to confirm the innner and outer size of your parts 640959. I am looking for alternative parts for MJM02743 Mitsubishi Jeep rear axle inner oil seal. Best Regards

Willys Jeep Parts Tech:
OD: 2-1/4" ID: 1-3/8"

Do I need a gasket also, or will Permatex alone work?

Willys Jeep Parts Tech:
There is no gasket that would be required with the inner seal.

Does the metal part or the rubber part go to the inside?

Willys Tech:
The metal part goes to the inside. This is the seal by your carrier bearings.

Is there a differential vent on a Dana 44 rear end like there is on the 27 in the front?

Willys Tech:
Typically no.

Is there a special puller I need to pull the axle so I can replace inner oil seal on the rear Dana 41? i have everything off down to the flang that the brake backing plate mounts on but if I pull on the axle, nothing moves.

Willys Tech:
HP600 is the part number for our hub puller you will need.

How about the oil seal for the wheel drum bearing for the dana 44 ? Do you have one ,if so what is the part number for the seal.

Willys Tech:
That is part number: 914802

What is the best way to pull these. Do you have a special tool for pulling and then putting the new ones back in.

Willys Tech:
We usually just use a needle nose screw driver to get the old one out. You want to tap the new one in evenly and seat it.

I recently purchased 2 inner seals from you for my dana 44 on a 67 cj5. When I removed the differential there were no seals. Does this axle require inner seals inside the case? I didnt have issues with an oil leak. I was doing this as part of a restoration. I'm not sure why these seals are missing if they were required. I've had this jeep since the early 70s and dont recall work being done to the axle.

Willys Tech:
This is the inner seal that goes by the inner carrier bearings.

How many per axle?

Willys Tech:
2 per axle.
