Amber LED Parking Light Assembly (Pair)
Fits 46-71 Jeep & Willys

Part # 649649

LED Amber Parking Light Pair

Sold as a pair.

Used on vehicles with parking light attached to grille and an protruding lens and bezel screwed to the outside.

Equipped with two brightness levels, these three-wire LED lights give you more options. Install them on the front or rear of your vehicle as side marker lights, clearance lights, auxiliary turn signals or supplemental brake lights.

These lights are SAE P2 PC rated and produce a 180-degree visible arc of light. When installed on the 45-degree corner of a truck or trailer, they function as both a clearance and side marker light; two for the price of one!

Fits:
46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
55-71 CJ-5
46-64 Truck
46-64 Station Wagon
48-51 Jeepster

Wiring Install:

--Driver Side:
White is the ground. Use the screws for the parking lights to the grille as the grounding point.
Yellow is the power. It attaches to the junction block on the fender.
Black is for turn signals (if used)

--Passenger side:
White is the ground. Use the screws for the parking lights to the grille as the grounding point.
Yellow is the power. It attaches to the wire leading over to the junction block with the headlight harness
Black is for turn signals (if used)

Note:

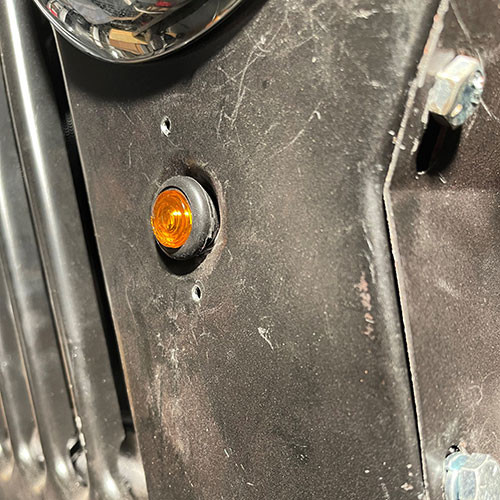

Must drill a 3/4" hole for the grommet to seat into the grille

Part # Price
649649

$54.99

MSRP:

$54.99

MSRP:

Call for Details

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

If used for turn signals is there anything special I need for them to work properly (ie led flasher)?

Willys Jeep Parts Tech:
Give us a call and we can help walk you through it.

Are these 12V only or are they compatible with 6V Systems?

Willys Jeep Parts Tech:
These are 12 volt only.

Does this require cutting of the grille to mount?

Willys Jeep Parts Tech:
No cutting, but you may have to drill your hole a little larger for the wiring to go through.

Which type of bezel should I order to use these as front marker/turn signal?

Willys Jeep Parts Tech:
Depends on the vehicle. Just give us a call and we can help you out from there.
